Cascading Failures in Urban Traffic Systems Tied to Hidden Bottlenecks

Transportation systems in urban settings are vulnerable to a variety of factors including weather, traffic congestion, and special events. Bottlenecks, in particular, can cause major problems and lead to cascading failure of the entire system.

Scientists from Fudan University and Shanghai University of Electric Power in China developed a modeling technique to study urban traffic flows and verified it with real-world data from Shanghai. They describe their approach in Chaos, and show that their model can be used to find previously unknown bottlenecks that could lead to failure of the entire road network.

This research sits at the intersection of physics and information science and is an innovative model involving the study of smart cities. The model uses a modified form of percolation theory, widely used to understand flow of liquids through porous media, such as soil and gels. When liquid flows through a network of pores, it is occasionally blocked in much the same way the flow of vehicles through roads can be blocked.

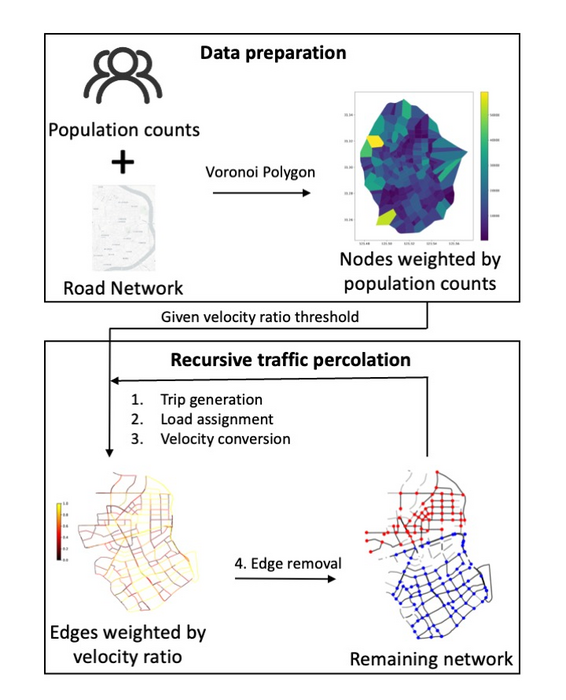

Framework of the traffic modeling procedure: First, a directed, weighted network using population distribution and road network topology is generated; this is followed by recursive traffic percolation over the generated network.

In constructing their model, the investigators considered the existing road network and population distribution in Shanghai. They generated trips between various population centers, assigning those trips to roads that provided the shortest travel distance.

“The urban area is an open system where, in addition to intraregional flows, there is also an exchange of flows between external regions. To simulate the effect of commuting, we increased the population of bordering regions,” author Yu-Gang Ma said.

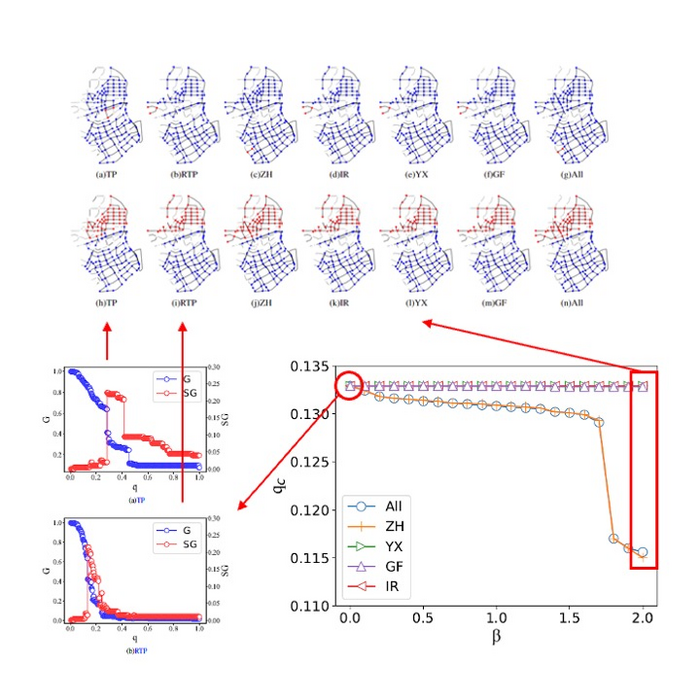

Results of recursive traffic percolation, including the effect of external flow on critical values, G and SG, of percolation. The corresponding remaining roads and intersections are shown before and at the critical value.

The traffic load on each road was converted to a velocity. When the flow of traffic reached an unacceptably low velocity on a given road, that road was deemed dysfunctional and removed from the model.

By repeating this process in a recursive fashion, the investigators discovered that a massive cascading failure of the urban transportation system occurred in a sudden and discontinuous fashion, much the way a phase transition occurs suddenly when ice melts or water boils.

Author and project leader Dingding Han said, “We used publicly available maps for the Yangpu District in Shanghai and identified four roads that serve as major commuting thoroughfares. By applying our recursive traffic percolation model, we were able to identify one particular thoroughfare, Zhonghuan Road, as a potential bottleneck that could lead to cascading failure of the entire urban traffic system.”

When Zhonghuan Road becomes blocked, traffic flows into side streets that are eventually unable to handle the flow of vehicles. This leads to additional blockages and a breakdown of the entire system. When this occurs, the network of roads breaks into disconnected fragments.

“It is worth noting that the Zhonghuan Road bottleneck was found during the fifth round of road removal in our model,” author Jiang-Hai Qian said. “Through the dynamic process of cascading failure, the hidden bottleneck was discovered.”
